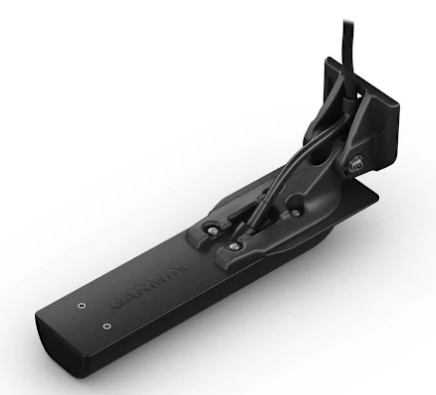

Garmin Transducer GT56UHD

Garmin Transducer GT56UHD

General
Transducer frequency Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
Transducer power Traditional 350 W; ClearVü/SideVü 500 W
Transducer beamwidth Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
Transducer maximum depth Traditional: 244 m freshwater; ClearVü: 122 m; SideVü: 152 m
Transducer cable length 7.62 m
Transducer depth/speed/temperature Depth and temperature
Transducer number of pins 12
Transducer supported deadrise/transom angles 0°-70° degree transom

Make Garmin
SKU/Model Number 010-13073-00
Name Garmin Transducer GT56UHD

Garmin Transducer GT56UHD

General
Transducer frequency Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
Transducer power Traditional 350 W; ClearVü/SideVü 500 W
Transducer beamwidth Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
Transducer maximum depth Traditional: 244 m freshwater; ClearVü: 122 m; SideVü: 152 m
Transducer cable length 7.62 m
Transducer depth/speed/temperature Depth and temperature
Transducer number of pins 12
Transducer supported deadrise/transom angles 0°-70° degree transom
Weight 2.0000
Height 27.7000
Width 51.8000

No Features and Option.
